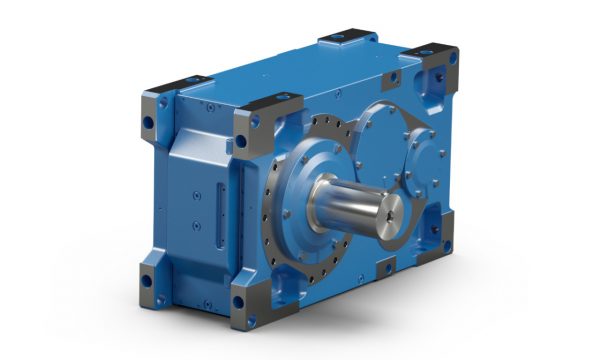

MAXXDRIVE® parallel gear units

  • Performance: 1,5 – 6.000 kW
  • Torque range: 15.000 – 282.000 Nm
  • Power ranges: 1.5 – 6,000 kW
  • Torque: 15,000 – 282,000 Nm
  • High strength precision-made one-piece housing
  • Modular and flexible design for optimum adaptation to your application
  • Low running noise
Category:
Sizes: 11
Mounting position: M1, M2, M3, M4, M5, M6
Ratio: 5,54:1 – 30.000:1

The parallel gear version of the MAXXDRIVE® industrial gear unit is manufactured according to the proven UNICASE housing principle and is available in all sizes. Because of this design, mixer drives can often be implemented without additional bearings. Large roller bearings and centre distances increase the load capacity and service life of the individual components. Effective cooling systems reduce temperatures and extend the life of lubricants. We offer short planning and delivery times. This is possible due to the extensive knowledge of our experts about the specific requirements for every application, as well as optimised stocking of components.
