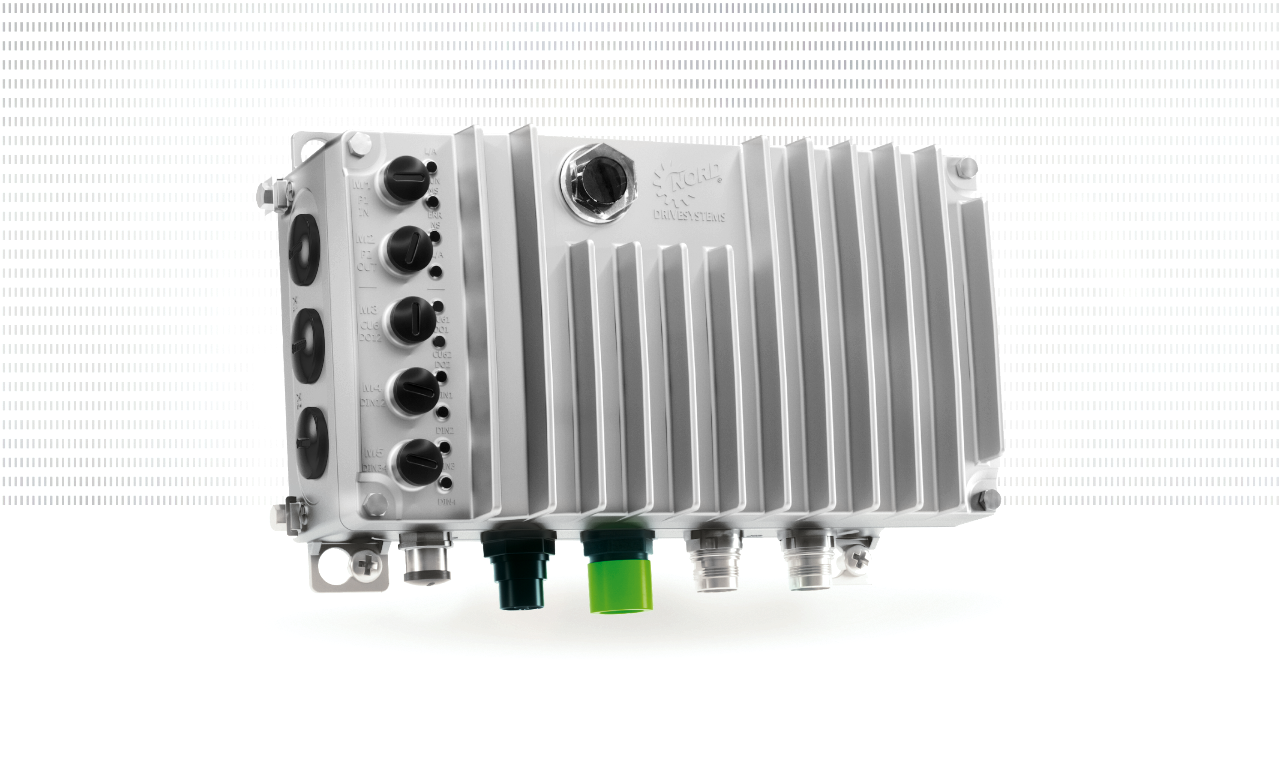

SK 300P – NORDAC ON/ON+ – frequency inverter

  • Powers: Up to 0.95 kW
  • Protection class: IP55, IP66

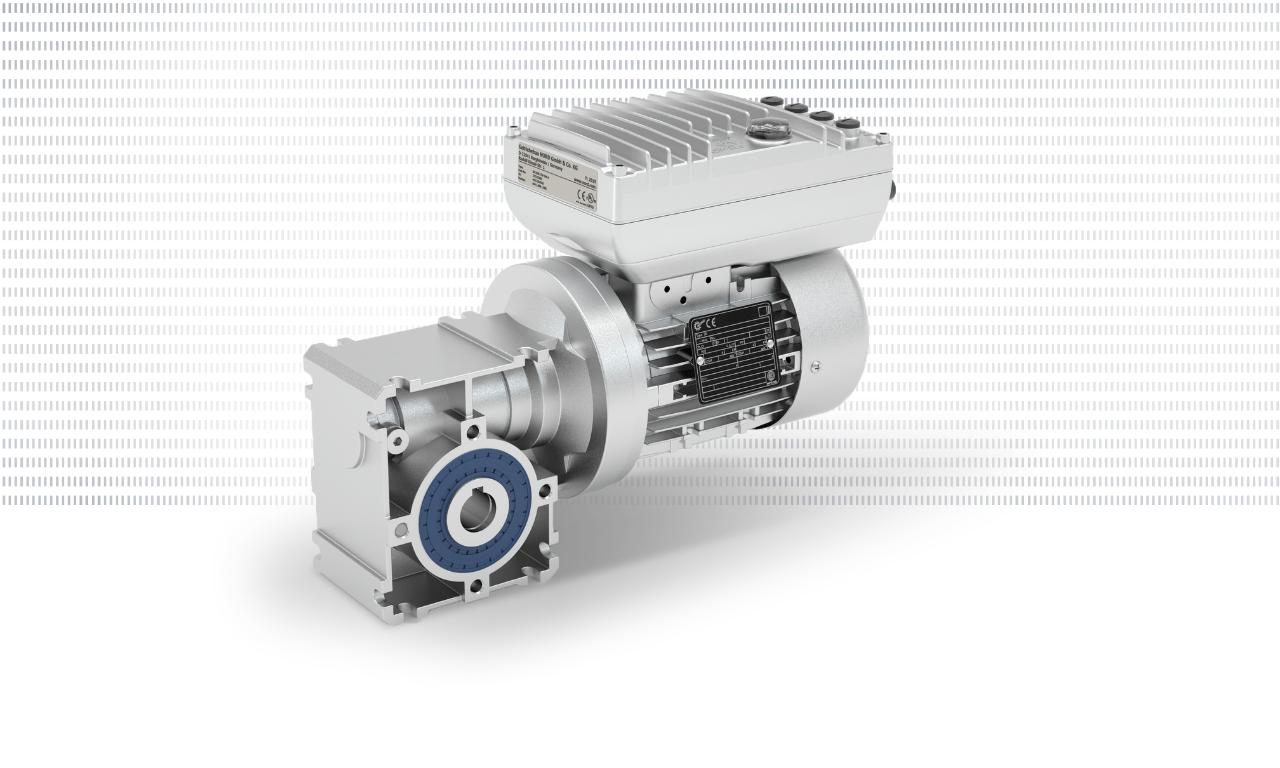

  • Wall or motor mounting
  • Ethernet communication for integration
  • Plug-and-Play solution for fast commissioning

NORDAC ON was developed to meet the special requirements of horizontal conveyor technology, as well as for the interaction with the new IE5+ synchronous motor (NORDAC ON+), and is characterised by an integrated Ethernet interface, full Plug-and-Play capabilities, and a very compact design. The NORDAC ON is an economic solution for IIoT environments.

Available from Q4/2021



  • Versions
    • Power range: 0.37 – 0.95 kW
    • 3-phase 380 – 480 V

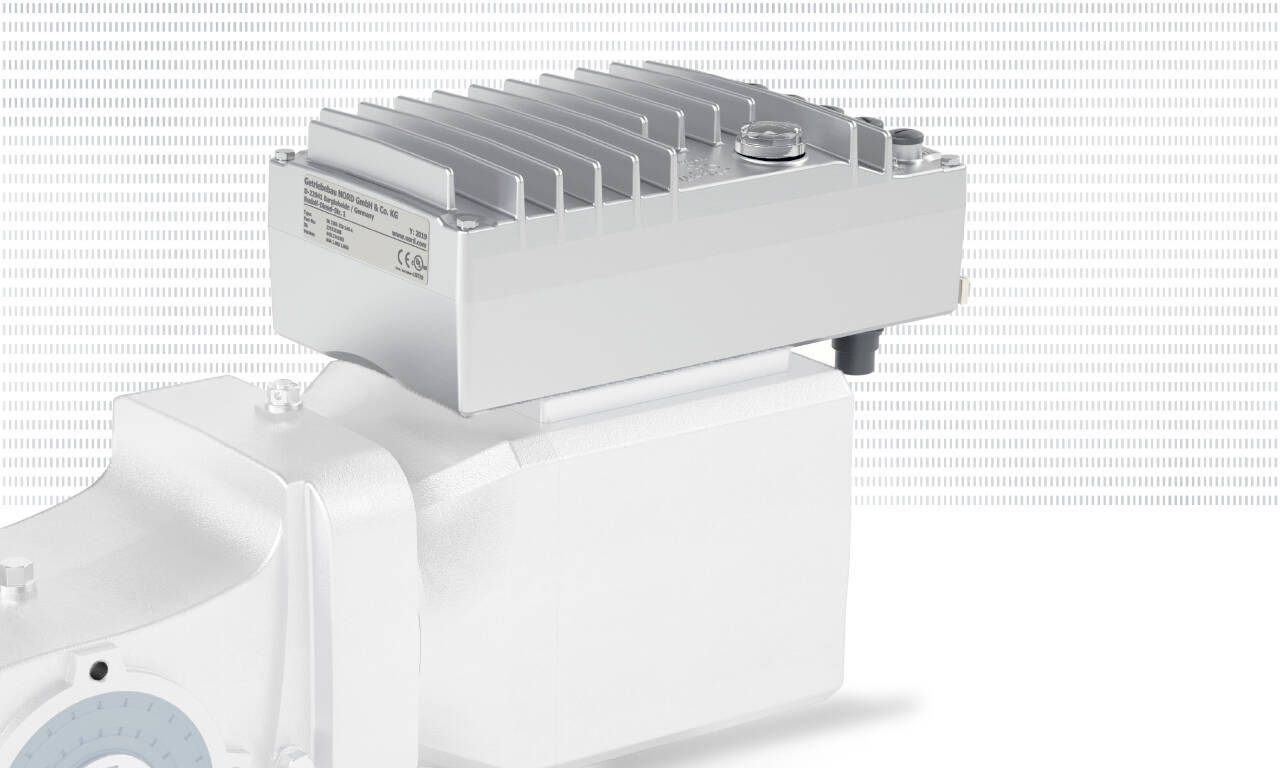

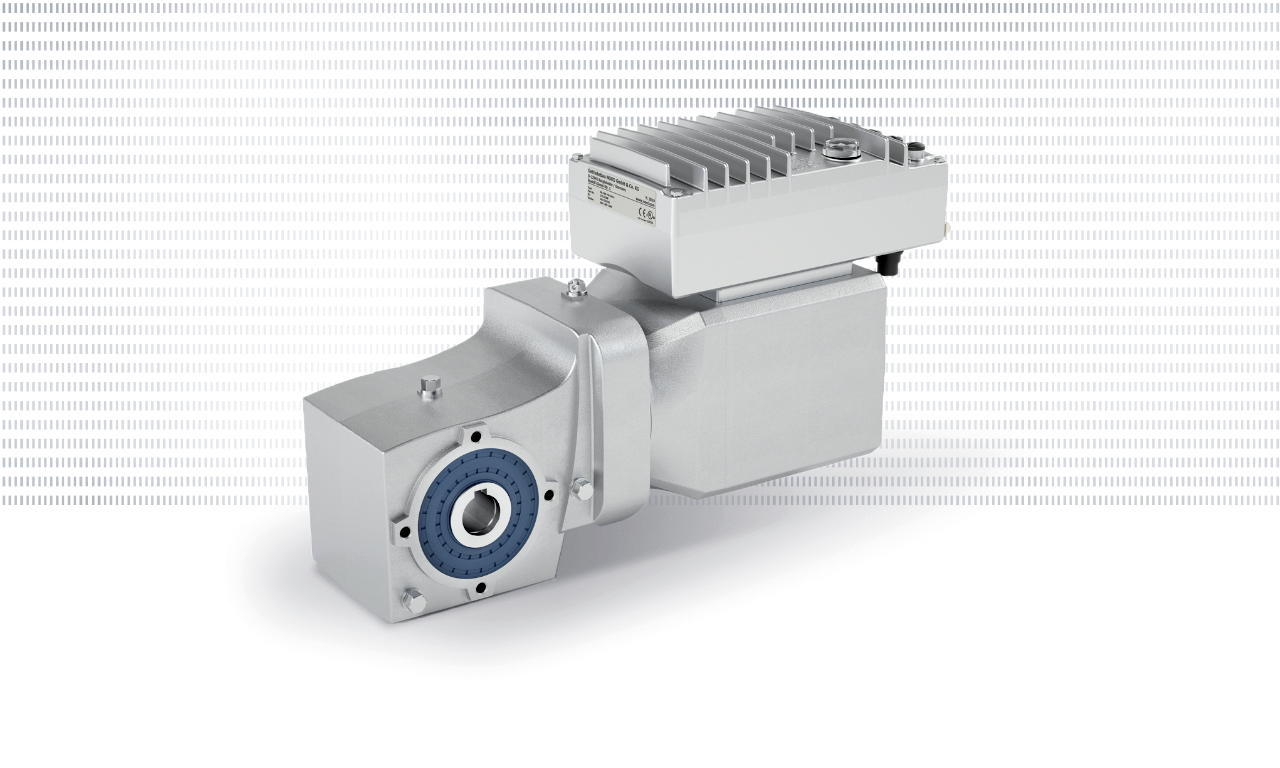

    • NORDAC ON for IE3 drives, NORDAC ON+ for IE5+ drives
    • Protection class: IP55, IP66
    • Functional safety
  • Characteristics
    • Future-ready
    • IIoT capability
    • Firmware update via Ethernet
    • PLC functionality for drive-related functions (PLC onboard)
    • Full Plug-and-Play capability for fast commissioning



    • Control and parameterisation tools with simple parameter structure



    • Possible reduction of variants within a system



    • Drives usable over a wide frequency range



    • Integrated Ethernet-based field bus systems switchable via parameters



    • Compact, space-saving design due to integration of Ethernet communication



    • STO and SS1 – optional integrated safety functions



    • Line filter for compliance with EMC regulations
