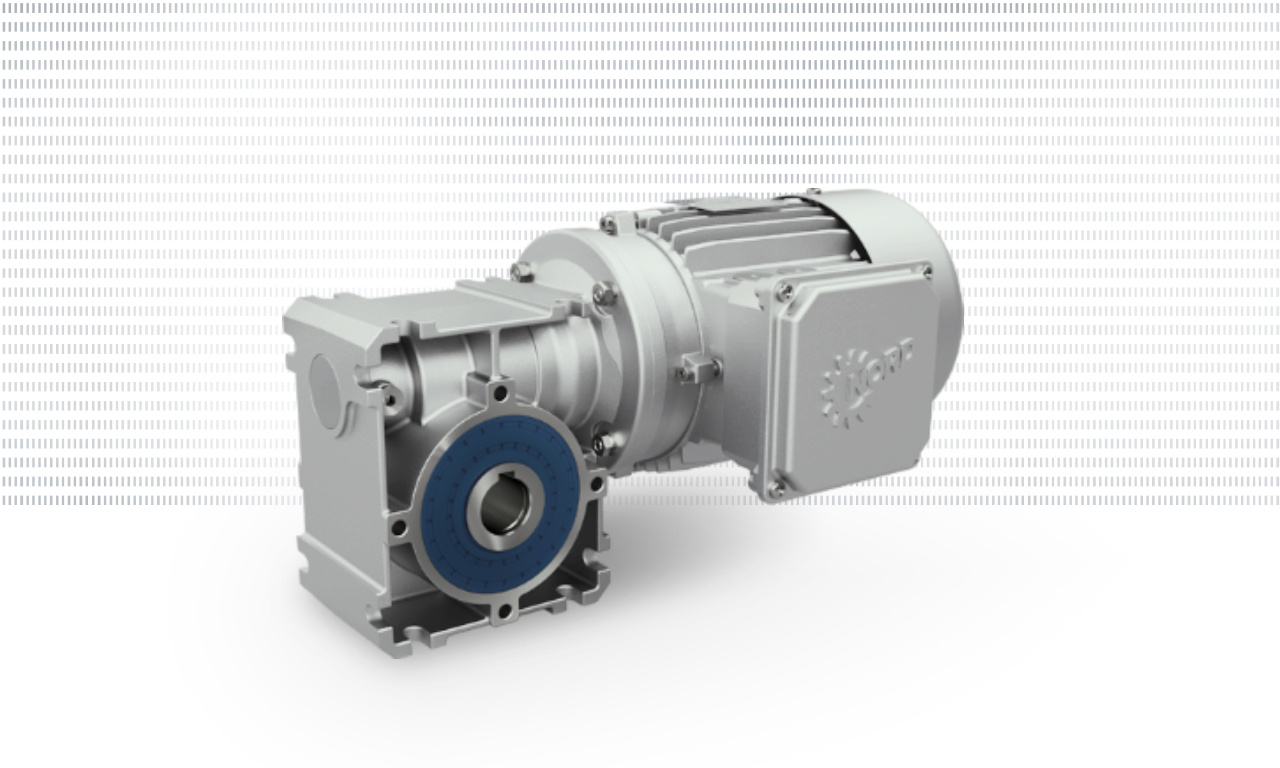

UNIVERSAL SI worm gear units

  • Performance: 0,12 kW – 4,0 kW
  • Torque range: 21 Nm – 427 Nm
Sizes: 5
Ratio: 5.00 – 3000.00

UNIVERSAL SI worm gear units provide a high power density and are extremely compact. They are characterised by having low-noise torque transmission. Due to the simple but effective design they provide considerable installation space advantages in comparison with other gear unit types.

  • Versions
    • Hollow and solid shaft gear units
    • Bolt-on-, flange- and foot-mounted versions
    • Angled gear units
  • Characteristics
    • High overload capacity
    • Application-specific versions
    • Soft and quiet running
    • Aluminium housing version for low weight
    • Optional 10:1 helical pre-stage and double worm gear unit
    • Modular, flexible and versatile application
    • nsd tupH version possible
    • Output shaft bearing for high load capacities
