NORDAC BASE – SK 180E – Frequency Inverter

  • Power range: 0.25 – 2.2 kW
  • Protection class: IP55, IP66, IP69K
  • Wall or motor mounting
  • Surface treatment (nsd tupH)

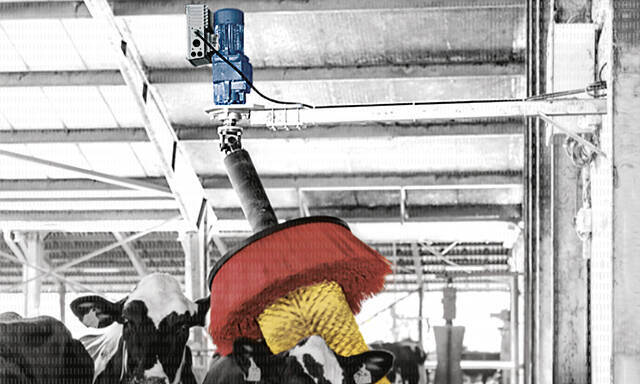

The NORDAC BASE is NORD’s economical drive solution for the decentralised frequency inverter technology sector. The NORDAC BASE gives you a frequency inverter with a robust design that has been specially developed for simple drive solutions and low-cost installation outside the control cabinet. With the optional   surface treatment, the NORDAC BASE is ideal for highly demanding and harsh environments.

  • Versions
    • Power range: 0.25 – 2.2 kW
    • Single-phase 110 – 120 V, 1/3-phase 200 – 240 V, 3-phase 380 – 500 V
    • Protection class: IP55, IP66, IP69K
    • ATEX zone 22 3D

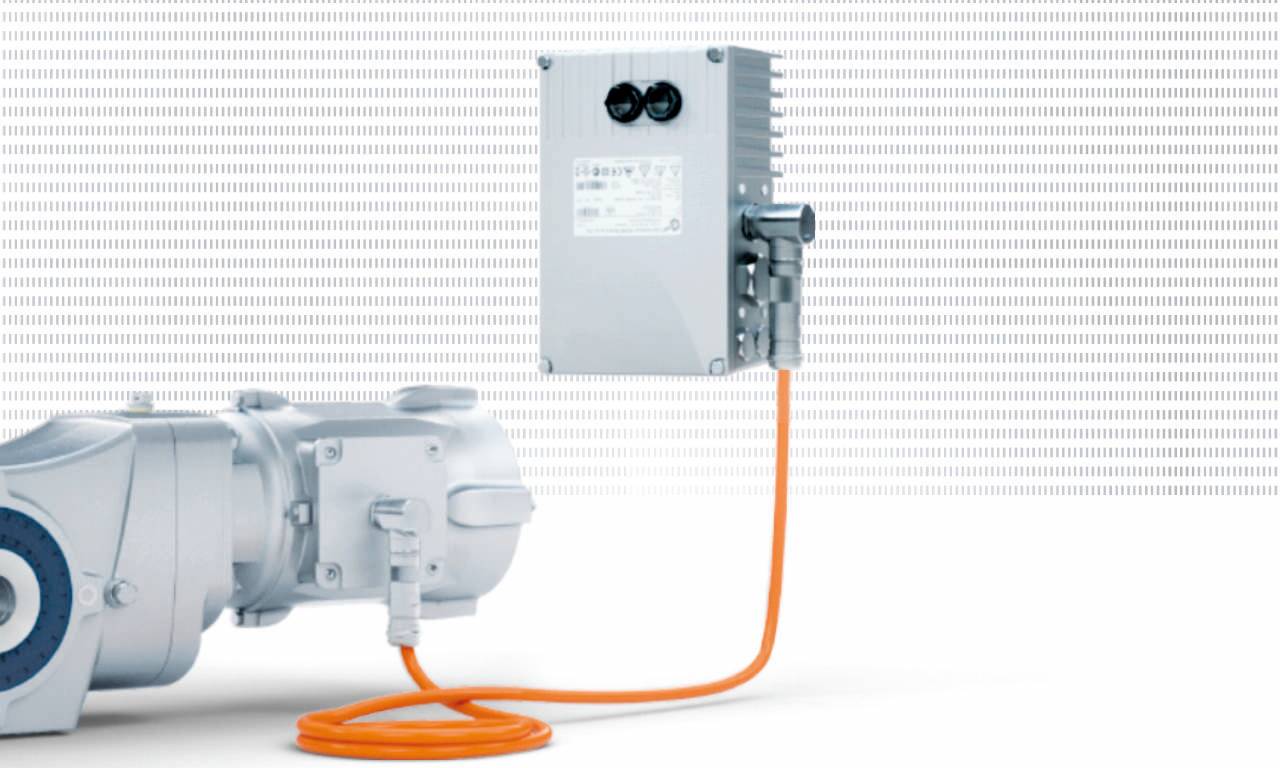

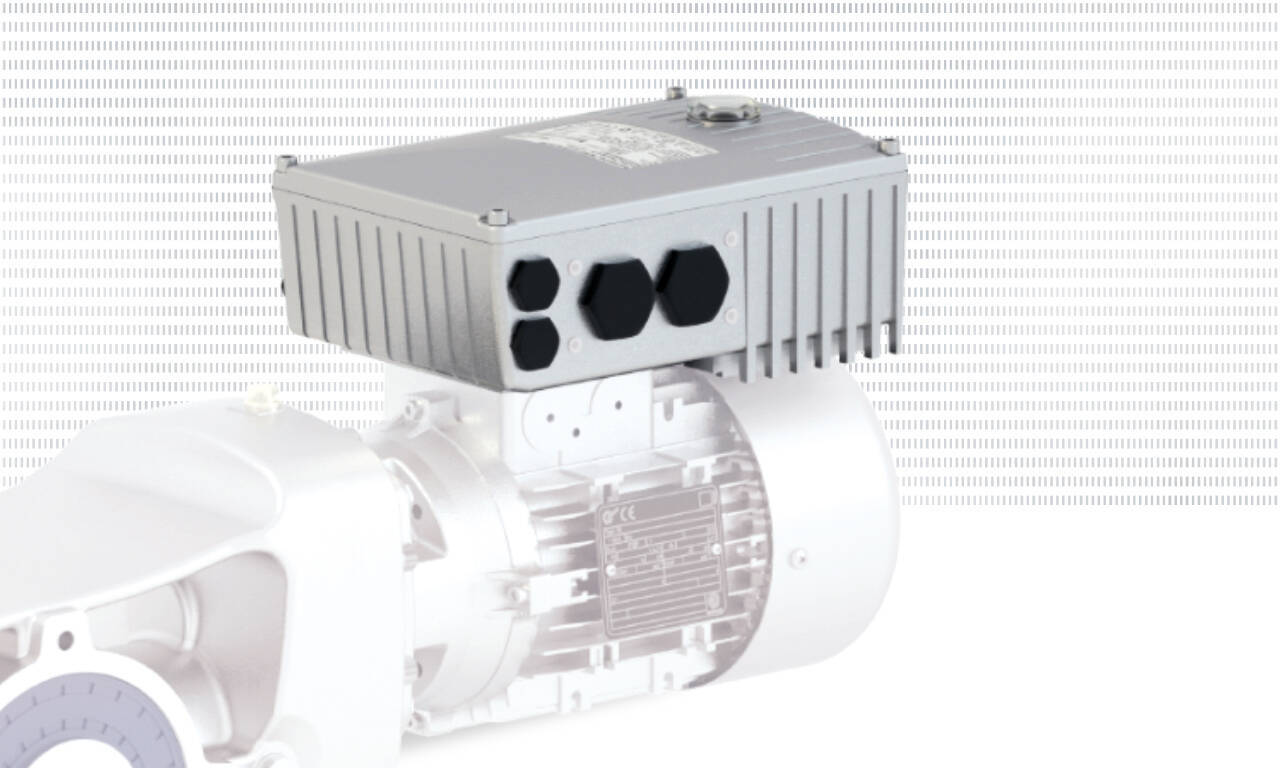

    • Motor-mounted, wall-mounted
    • SK CU4, SK TU4 plug-in control modules
    • SK CU4, SK TU4 extension modules
  • Characteristics
    • 3x Digital In, 3x Digtal Out, 2 x Analogue In
    • Optional In/Out extension
    • Ethernet interface can be extended for each option module
    • Parameter structure compatible with all NORD frequency inverters
    • Parameterisation via plug-in control module, NORDCON software tool or app
    • 4 parameter sets which can be switched online
    • PLC-functionality for drive-related functions
    • V/f control, current vector control in open-loop and closed-loop mode
    • Integrated line filter
