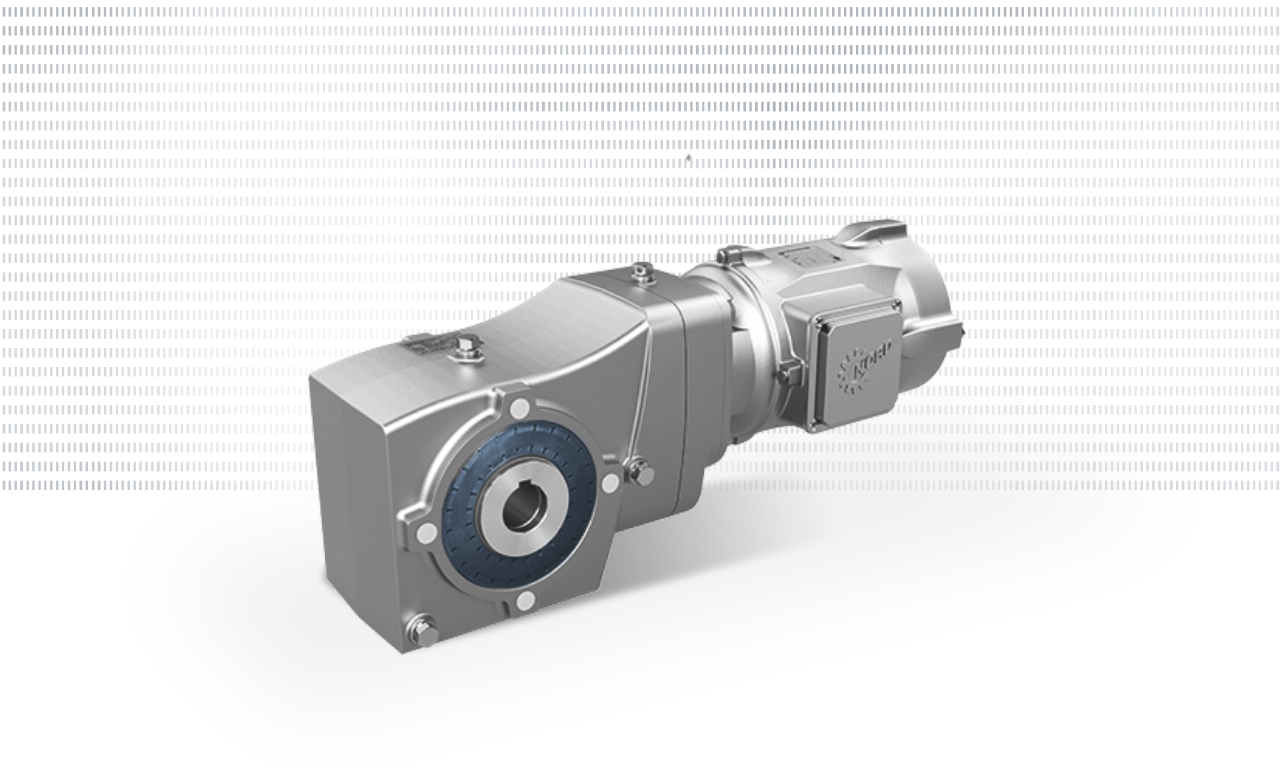

NORDBLOC.1® bevel geared motor

  • Performance: 0,12 kW – 9,2 kW
  • Torque range: 50 Nm – 660 Nm
Sizes: 6
Ratio: 3.03 – 70

The performance-optimised two-stage bevel gear units are an innovative NORD design made from high-strength aluminium alloy. Thanks to the wash-down version, the new two-stage NORDBLOC.1® bevel gear units are especially suitable for conveyor applications as well as in the food industry.

  • Versions
    • Solid and hollow shafts (key, GRIPMAXX™, shrink disc)
    • Standard version: SK 92.1: Foot/B14 flange with optional B5 flange and torque support. SK 93.1: B14 flange with optional B5 flange and foot mounting
    • Angled gear units
  • Characteristics
    • Aluminium housing version for low weight
    • High efficiency for low operating costs
    • Innovative design enables rapid cleaning and reduced weight
    • High axial and radial load capacities enable safe operation
    • Quiet running
    • Large speed range
    • nsd tupH version possible
    • Application-specific versions
