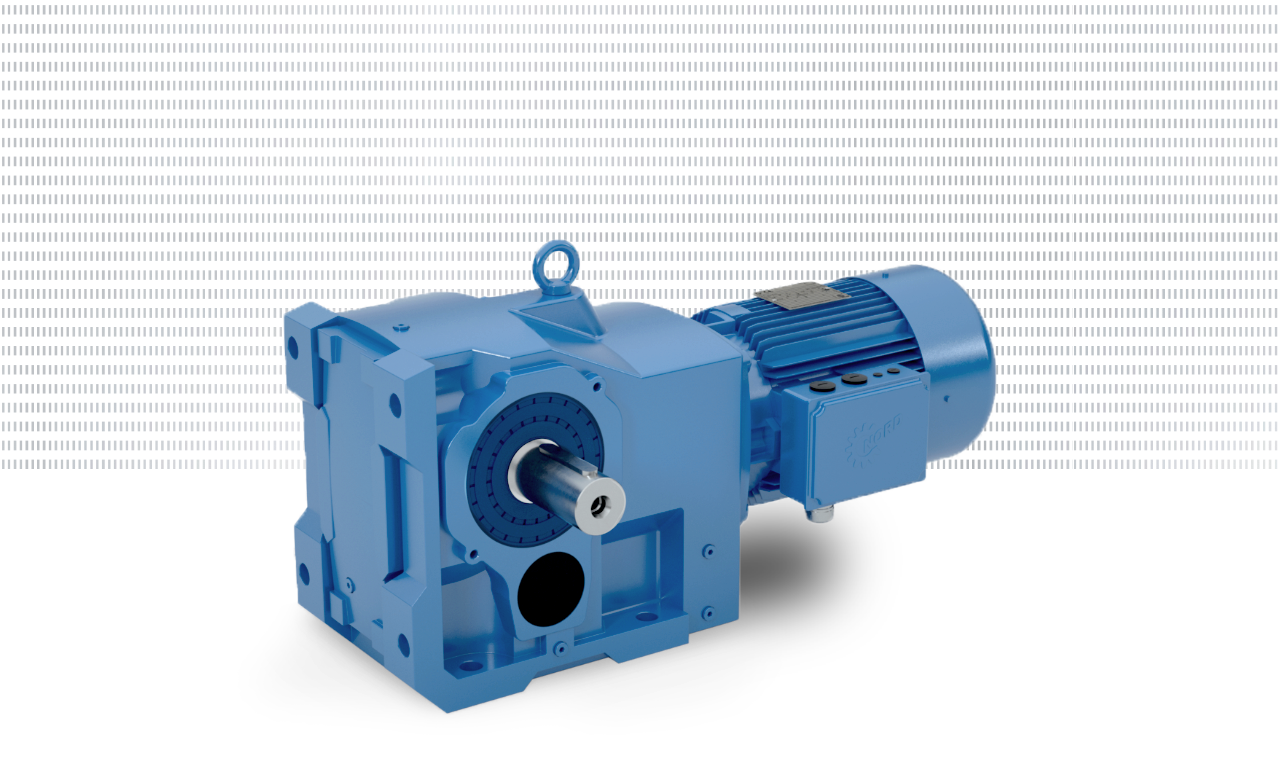

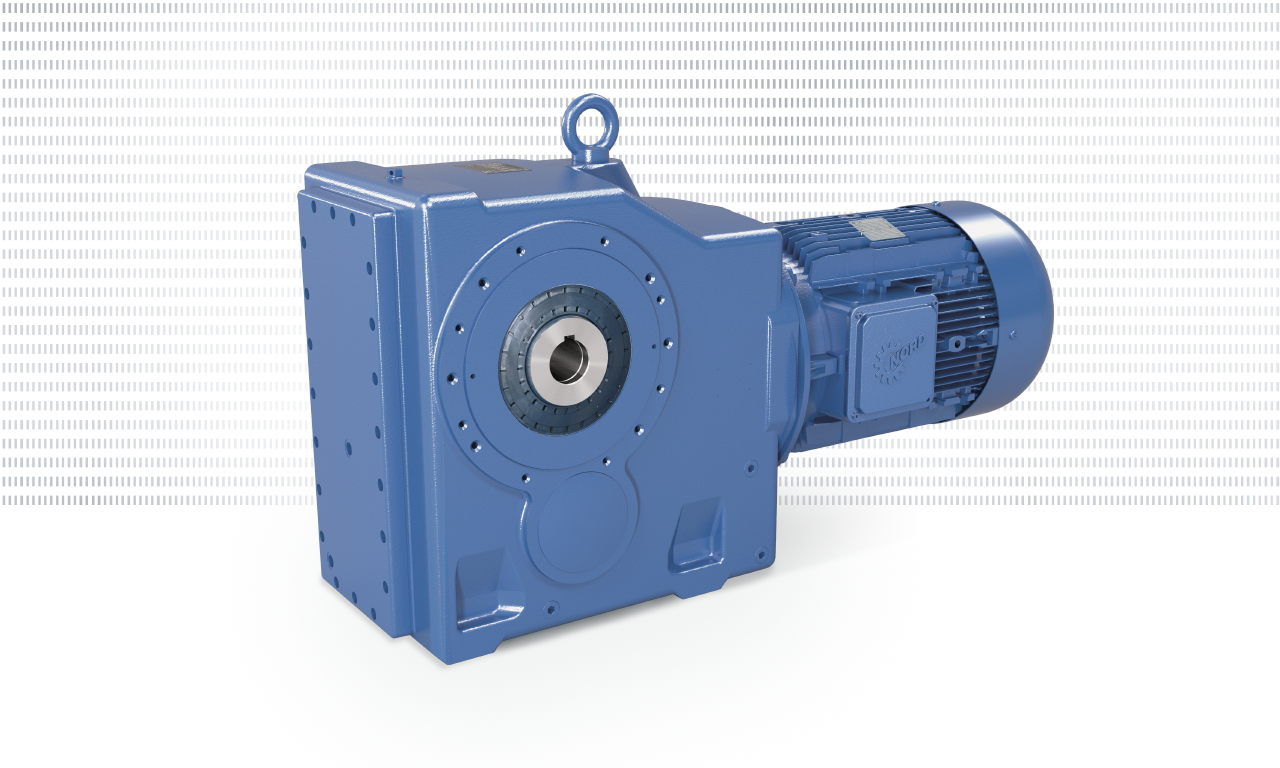

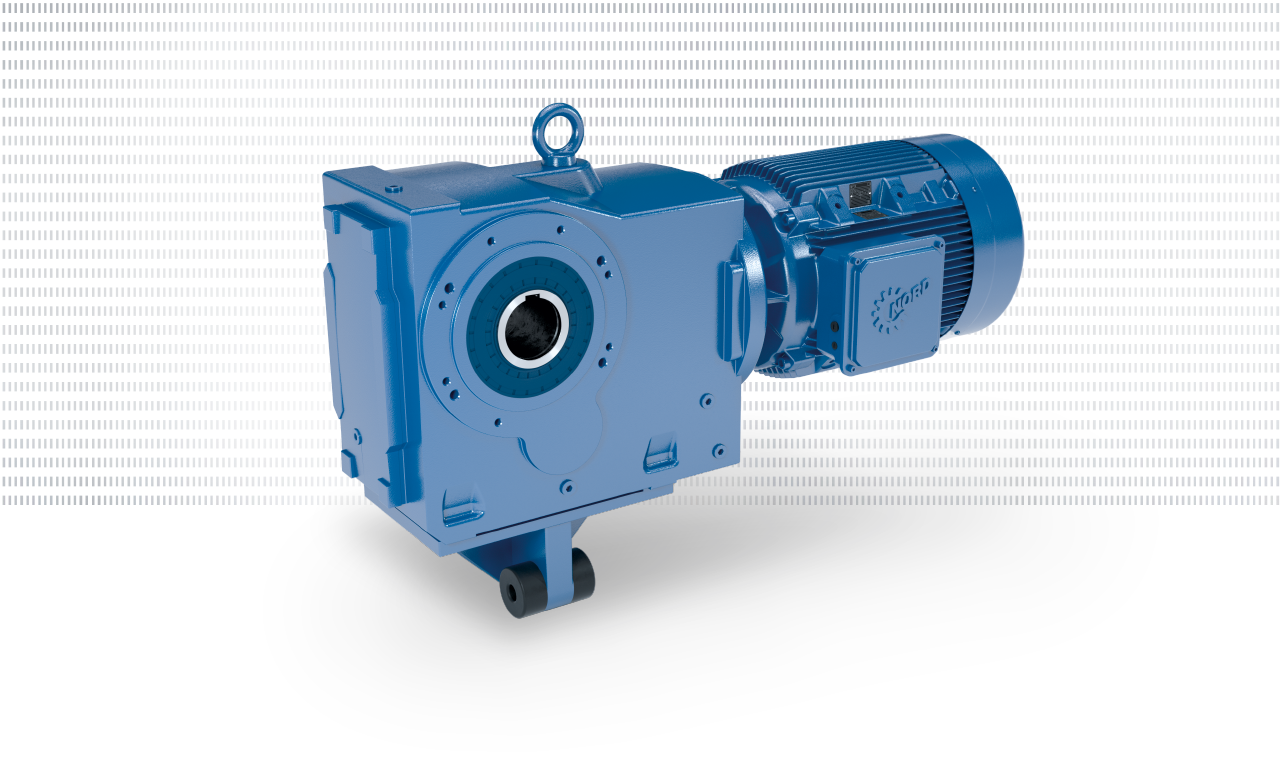

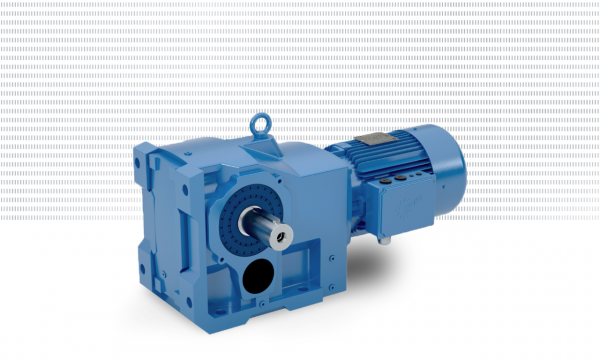

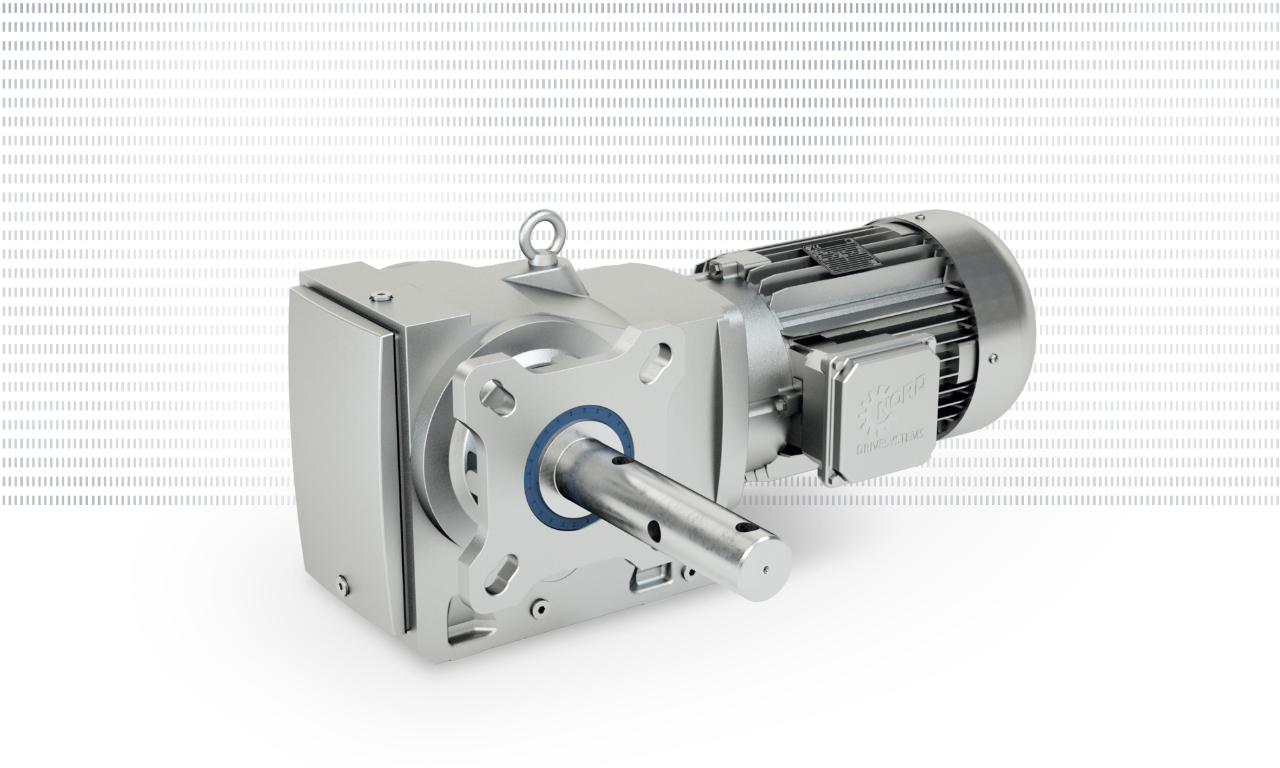

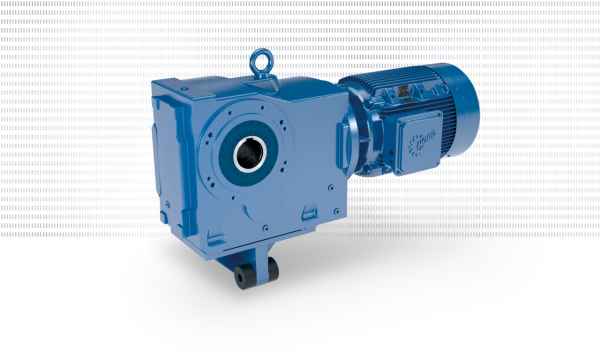

UNICASE bevel geared motor

  • Performance: 0,12 kW – 200 kW
  • Torque range: 180 Nm – 50.000 Nm
Sizes: 11
Ratio: 8.04 – 13432.68

Bevel geared motors with the tried and tested UNICASE housing principle offer security, as they need little maintenance and have long life cycles. UNICASE bevel gear units are available in various versions and sizes, especially suitable for your application.

  • Versions
    • Solid and hollow shaft (key, GRIPMAXX™, shrink disc)
    • Bolt-on-, flange- and foot-mounted versions
    • Angled gear units
  • Characteristics
    • High efficiency for low operating costs
    • Robust design for long life and easy maintenance
    • Cheap to run thanks to low maintenance
    • Robust grey cast iron housing
    • Various bearing concepts guarantee high axial and radial load capacities
    • Application-specific versions
